4 Ways to Run a Retina MacBook Pro at 2880×1800 Native Resolution

Jun 18, 2012 - 31 Comments

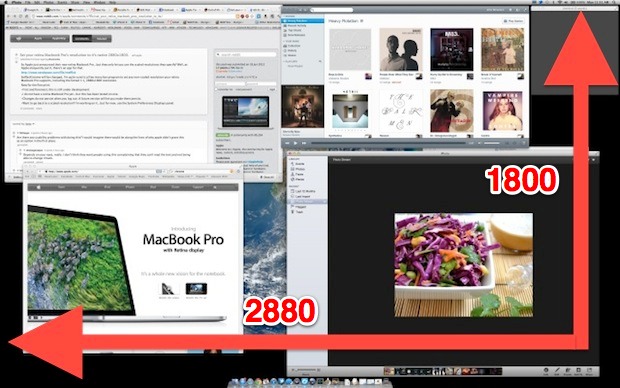

Retina MacBook Pro at 2880x1800 resolution

The Retina MacBook Pro 15″ screen resolution is 2880×1800, but because of how a retina display works the effective resolution is 1440×900 and the onscreen elements are just running in HIDPI mode. Apple provides an option to run at 1920×1200 through System Preferences, but as of now there is no built-in approach to running the retina display at the screens true 1×1 native resolution of 2880×1800. Instead, you must activate the 2880×1800 option through a variety of third party approaches, the result of which is a gigantic amount of screen real estate, albeit with tiny onscreen elements. If that sounds good to you, here are three four different ways to enable the true 1-to-1 native res:

SwitchResX

A reasonably simple solution, SwitchResX is a third-party preference panel that allows you to run custom resolutions on any display. Install the preference panel, select the Retina Display, and add a custom resolution setting for 2880×1800.

This shareware app is free to use for 10 days before it wants to be registered. SwitchResX has a lot of technical customizations available within it, possibly making it overkill for this task.

SetResX

Probably the easiest option of them all, SetResX is a little menu-bar app that allows you to run 2880×1800 easily.

  • Get SetResX (be sure to click the lower download link, not the ads on the page)

Hopefully the developer of SetResX will find a less shady site to host their app, but nonetheless SetResX does work.

scrutil

Slightly more advanced due to the nature of the command line, the free utility called screenutil gets the job done immediately with a quick entry into the Terminal:

Launch Terminal and drag and drop scrutil into the command line to use it once, but if plan on using it often it’s a good idea to toss scrutil into /usr/local/bin for easy future access. Once installed, changing the retina display to native 2880×1800 with screenutil is achieved with the following command:

scrutil s 2880 1800 16

The command will report back the resolution change, the 16 at the end is color depth so you can set that to something else if you’d like. You can set it back to the default resolution either through System Preferences or with scrutil s 1440 900.

ChangeResolution

ChangeResolution is a new tiny AppleScript front end to a command line utility that changes the resolution to 2880×1800:

Pick whichever method best suits your needs, though with the Retina MacBook Pro just now starting to ship to many customers there’s a high likelihood that better options will soon be available. We’ll keep you posted.

Thanks to Michael for the tips

.

Related articles:

Posted by: William Pearson in Mac OS, Tips & Tricks

31 Comments

» Comments RSS Feed

  1. US says:

    If you already use brew. otherwise i would recommend cakebrew. very nice gui. there install screenresolution. then in applescript automator add applescript with the following. adapt to your needs.
    ——–
    set x to do shell script “bin/bash; PATH=/usr/bin:/usr/local/bin export PATH; screenresolution get 2>&1”
    if x contains “2880x1800x32” then
    do shell script “bin/bash; PATH=/usr/bin:/usr/local/bin export PATH; screenresolution set 2048x1280x32@0”
    display notification with title “2048 x 1280”
    else if x contains “2048x1280x32” then
    do shell script “bin/bash; PATH=/usr/bin:/usr/local/bin export PATH; screenresolution set 2560x1600x32@0”
    display notification with title “2560 x 1600”
    else if x contains “2560x1600x32” then
    do shell script “bin/bash; PATH=/usr/bin:/usr/local/bin export PATH; screenresolution set 2880x1800x32@0”
    display notification with title “2880 x 1800”
    end if
    ——–

  2. Jun says:

    Thank for the info. SetResX did the job beautifully.. Thank SetResX developer…

  3. Shaun says:

    Thank you very much for the info. For Flip-Q Pro Teleprompter It was required to have both monitors at the same resolution and SetResX did the job.

  4. An update the URL for ChangeResolution

    http://wineskin.urgesoftware.com/tiki-view_blog_post.php?postId=51

    Here’s the text from the URL //

    This isn’t exactly a Wineskin related post, but… with the new Retina Macs not having a way to truly change the resolution, I threw together a little app that uses the WSReso command line tool I made for older versions of Wineskin for changing resolutions before RandR was added to XQuartz… it uses WSReso and its just an Applescript GUI front end that lets you change resolutions, including knocking that Retina Display Macbook Pro up to a true 2880×1800. Works on any Macs for changing resolutions around… its very simple, but effective.

    http://wineskin.urgesoftware.com/Special/Change Resolution.app.zip

    EDIT: update

    if you want to just have an app that automatically goes to your max resolution that you can put in your startup items… use this

    http://wineskin.urgesoftware.com/Special/SetRes.app.zip

  5. Marius says:

    The best option of all of these seems to be the

    1) Free
    2) Working
    3) on iTunes app store

    Get “Display Menu” at:

    https://itunes.apple.com/us/app/display-menu/id549083868?mt=12

  6. Jeff Martin says:

    To see additional resolutions in the Display preferences, hold the Option key and click the “Scaled” radio button.

    http://support.apple.com/kb/HT5369?viewlocale=en_US&locale=en_US

  7. cam says:

    no, its not a mac

  8. Alex says:

    Will any of this work for Ipad retina?

  9. Steff says:

    The command in the terminal works with 13 inch Retina also. You only need other numbers. ;)

  10. johnnie22 says:

    QuickRes does so much more now, it can enable HiDPI for non-Retina Displays, it can disable and change keyboard shortcuts, it can go up to 3840×2400. It’s the best once again, they fixed every problem. They should be included in the article, not these other apps that cost more and do less…

    It’s free.

    http://www.quickresapp.com

  11. JeroenB says:

    For a retina-display Macbook Pro, SetResX does not revert to ‘best-for-retina’. Text and images look fuzzy. Not recommended.

    QuickRes works fine, but has some nasty keyboard-shortcuts that conflict with my workflow (Capture One).

    SwitchResX is great and definitely worth the €14,- after the full trial period of 10 days. I love it when I start up Capture One or Photoshop and the screen resolution automatically changes to 2880×1800. Quit the program and the screen goes back to ‘best-for-retina’.

  12. johnnie22 says:

    QuickRes was updated to support OSX Lion

  13. G says:

    I spy a Dr. Octagon album in that screenshot. F yeah!

  14. Stu says:

    scrutil almost works for me, but if I’m in 1680×1050 and want to get back to ‘best’ either

    scrutil s 1440 900 32
    does it momentarily then switches back or
    scrutil t 1440 900 32
    does it but doesn’t look right, kind a like 1440 on a non retina macbook.

    quickres looks good but it doesn’t work with Lion!

  15. Jon says:

    There is also a new app named ResolutionTab http://resolutiontab.com, it changes display mode in one click.

  16. johnnie22 says:

    Andrew is right.

    The best app is still QuickRes.
    They added support for keyboard shortcuts, notifications and still are the quickest way to switch between resolutions.

    Andrew’s link is outdated though check them out here: http://www.quickresapp.com

  17. shazron says:

    Hi, I created a free preference pane utility to change to the 2880×1800 resolution, see my blog post “Change to the maximum screen resolution on the Retina Macbook Pro (Preference Pane)”: http://cl.ly/IsTn

  18. Andrew says:

    This is the best app I’ve found to easily switch between native resolution and retina res.

    It allows the user to switch resolutions in one click from a menubar icon, and supports all the way up to 3840×2400. You can select which resolutions you want in the preferences :)

    Have fun!

    It’s hosted on the dev’s game’s website…

    http://www.gravidrop.com/QuickRes/

  19. Simon says:

    When an app is HiDPI enabled, the content is effectively (or is capable of using) that full screen resolution anyway, albeit with larger interface elements. For example opening a high resolution photo in Preview full screen in the optimal (looks like 1440 x 900) resolution setting you’re still seeing the full 2880 x 1800 pixels and the same amount of detail as running the display in its native resolution. The same works for video and text. All running at the full resolution achieves is turning off any kind of interface and pixel doubling, so if you zoom to a 1024 x 1024 pixel image’s maximum size in the optimal setting, you’re actually seeing the image at 200 %, whereas at the screen’s native res you’d see it at 100 % but half the size.

  20. jtdavies says:

    I went for the SwitchResX which works nicely. I have to say that once you’ve tried the 2880×1800 native resolution you won’t go back, we not unless you’ve got bad eyesight.

    I love lots of real-estate, I can work on one side, have a broswer on the other, a spreadsheet in another and still watch a 720p movie in full res, absoluteoy perfect!

    As others have said, I really don’t know why Apple have only gone up to 1920×1200, I can’t see any reason for anything other than native res.

    -John-

  21. @mattmolini says:

    MacWorld ripped off your post and didn’t give you credit.

  22. phoenixdev says:

    Would you mind not linking directly to Sendspace and instead to Reddit? I’m sure I will be updating it in the coming weeks, and as such, don’t want people using out-of-date links.

    Also, blame the shady hosting on me being too cheap to host a utility in testing on my own website.

  23. Bill H says:

    I find myself wondering if 2880 x 1880 on a 15″ screen will actually be usable… probably not for text, but maybe for image editing?…

  24. Ron says:

    I am surprised Apple didn’t give the option in Display Settings. Why top out at 1920×1200 if higher is a possibility?

    • Pat says:

      I guess it was in an attempt to try to force people to develop for hidpi. The more users, the more demand on apps. Personally, having my screen at 2880 means i can sell my monitor and just do all my work on my laptop, and i don’t have to wait for photoshop and aftereffects to update to ‘retina’, so on the other hand i can defiantly see why people are angry about the restriction.

    • MM says:

      Well, it probably has something to do with the fact that they stepped down from the mid-grade GTX 560M Nvidia chip to the top end entry-level GTX 650M in the latest refresh (which benches show performs about as well as the 560), but they didn’t want to overtax the GPU pushing full resolution out of a lower end chip. Users would have probably been better served with a 1920X1080 display, having the price difference of the display applied to a 660M or even a 670M instead.

      • Justin says:

        Well, for what it’s worth, the resolution limit isn’t the issue. When you run 1920×1200 mode, what’s actually happening is that the GPU is pushing out 3840×2400 and then scaling it en masse to the 2880×1800 display. Applications act like they’re rendering to the 3840×2400 canvas at HiDPI. The result is what looks like a 1920×1200 size but with much higher detail.

        So if Apple has no qualms rendering to a larger backing and then scaling, why would they worry about rendering to a native 2880×1800 backing? It would actually improve, not decrease performance. Apple simply disabled the option because it’s small and hard to see. Is it the right choice? Maybe not, having the option wouldn’t hurt. But that’s their decision.

        In my experience, the biggest benefit would be more graphics memory. The GT 650M is a nice chip (heck, it runs Skyrim at almost max settings) but 1GB of memory is a bit tight. Comparing to the Razer Blade (arguably the closest competitor in the current market) the rMBP smokes it in every spec except for GPU (the Blade has a GTX 660M with 2GB of memory). The extra power consumption might be a factor, but 2GB of memory would have been nice. Still…

  25. Michael says:

    thanks for publishing my tip ;)
