FileVault 2 Benchmarks Show Full Disk Encryption is Faster Than Ever in OS X Lion

Aug 10, 2011 - 8 Comments

FileVault 2 Speed Test benchmarks

FileVault 2 is the all new disk encryption method that comes with Lion, and it’s more secure than ever, using XTS-AES 128 encryption on your entire disk, as opposed to just the user directory as in past versions. The other huge change that came with FileVault 2 is the significant performance boost, where using full disk encryption barely makes a dent on system performance.

Just how fast is FileVault 2? See for yourself with these benchmark charts on a variety of SSD and traditional hard drive configurations.

Filevault 2 benchmarks

Impressively, overall read and write performance is barely effected despite the drive being completely encrypted. Your data is truly safe, without much performance sacrifice.

If you want to read more from a hands on example, take a gander at ThePracticeOfCode’s FileVault 2 comparison on a 2011 MacBook Air vs a 2010 MacBook Air, which also the source of the two upmost graphs. That link is via Shawn Blanc, who sums it up nicely:

it’s likely you won’t even notice that [FileVault is] on. The truth is, the benefits of Lion’s disk encryption far outweigh the nearly insignificant drawbacks, especially if you’re talking about a new laptop with an SSD in it.

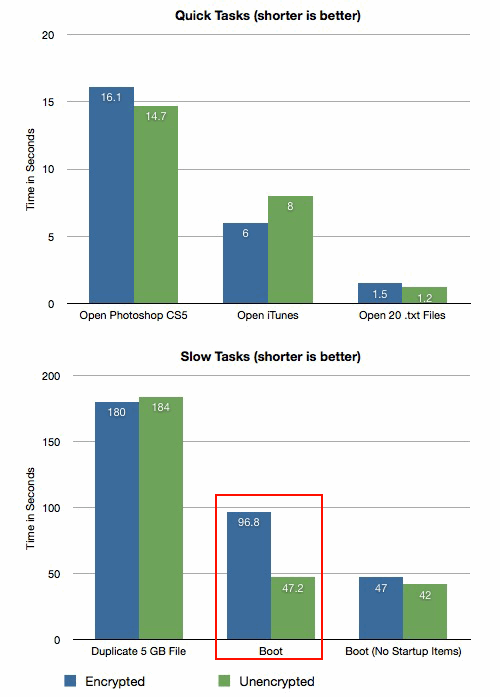

Those top two examples are SSD’s though, what about traditional spinning drives? Looking around, I came across Max Cho’s benchmarks, comparing the performance on a standard spinning 320GB Hitachi drive, and with the exception of a slower boot time, the results are practically identical, showing FileVault 2 is extremely fast on a traditional hard drive as well.

FileVault 2 spinning platter hard drive benchmarks

Max’s results are also on a Core i7 MacBook Pro, showing that Intels AES encryption instructions built directly into the 2010+ Intel Core CPU lineup are extremely effective at handling on-the-fly decryption and encryption while barely impacting performance.

Bottom line: if you have a Core i3, Core i5, or Core i7 processor, you’ll barely notice the impact of disk encryption, regardless of whether you’re using an SSD or traditional platter drive. Is a tiny performance hit worth the peace of mind of total data security? You’ll have to decide, but if you have sensitive data and a newer CPU on your Mac, it probably is.

If you want to enable FileVault 2 yourself, you can do so in the “Security & Privacy” panel of System Preferences. You can even store the key with Apple which can be retrieved by answering some standard security questions, making it virtually impossible to accidentally lose access to your own data if you forget a password or lose the encryption key.

Enjoy this tip? Subscribe to the OSXDaily newsletter to get more of our great Apple tips, tricks, and important news delivered to your inbox! Enter your email address below:

Related articles:

Posted by: Jeff Hurst in Mac OS X, Security, Tips & Tricks

8 Comments

» Comments RSS Feed

  1. albert says:

    My iMac is slower then my PC at everything it’s nice to know it does something fast. I have a 2.8 GHZ iMac with 16 GB of ram but it manages to consistently perform much slower than my 2.5 GHZ PC with 6 GB of ram. I guess patience is a virtue.

    • Andrew McNaughton says:

      You need to be more specific about which processor you have. The iMac uses a mobile processor. It is the same as a laptop. It is a laptop on a stick. It should not be compared to a desktop PC processor. Apple does not use desktop processors at all. Only mobile and workstation/server. So you cannot compare the clock rates. They told us to stop comparing clock rates about 8 years ago.

      • Marcus says:

        Not quite; iMacs use desktop components for chipset and CPU, but do in fact use mobile graphics processors. Apart form that, only the laptop form factor RAM and the compact case sets them apart from desktops (read PC tower).

  2. Zedd says:

    Xbench is an antique. Get a real benchmark.

    • rrb says:

      Re the last post (“contrasts your findings”), see the very bottom of the test where someone reports that the bottleneck is with a specific ssd drive controller, presumably found on an older air, not with file vault specifically.

  3. […] Nyårslöfte: Kryptera hårddisken på alla datorer du ägerI och med Mac OS X Lion är det bara dumt att inte kryptera hårddisken. Även för er som sitter fast på Windows finns Microsoft Bitlocker och Linux har som […]
